| Colours | titan / golden brick |
|---|---|
| Frame | ALU 6061 Monotube frame integrated |
| Fork | SR SUNTOUR NCX32-D AIR RLO |
| Chainring | BAFANG 44T |
| Shifting | SHIMANO SL-U6000 1x11SPD |
| Derailleur | SHIMANO CUES RD-U6000 11SPD |
| Freewheel | SHIMANO CS-LG400 11SPD 11-50 |
| Chain | SHIMANO CN-LG500 11SPD |
| Brakes | SHIMANO BR-MT200 (180/160) |
| Brake levers | SHIMANO BL-MT200 |
| Front hub | SHIMANO HB-TX505 |
| Rear hub | SHIMANO FH-TX505 |
| Rims | MACH1 ER-20 DISC |
| Tires | MAXXIS Metropass |
| Pedals | UNION SP-450 |
| Handlebars | Ergotec |
| Stem | Zoom adjustable |
| Seatpost | 4EX sand blasted |
| Saddle | SELLE ROYAL Lookin EVO Moderate |
| Motor | BAFANG MaxDrive M410 (80 Nm) |
| Display | BAFANG DP C010 |
| Battery | TOPBAND IH1 integrated 36 V / 720 Wh |
| Charger | 42 V / 4 A |
| Weight | 24.2 |

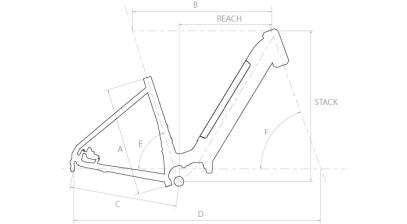

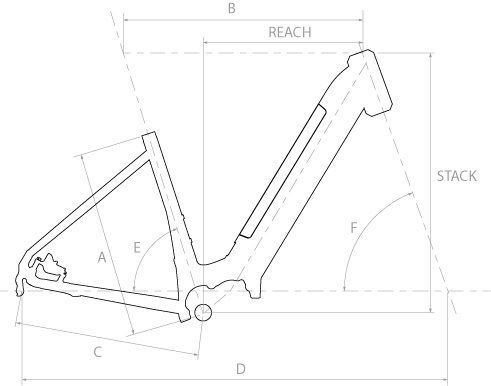

| Frame size | 16" (M) | 18" (L) | 20" (XL) |
|---|---|---|---|
| Minimum height (cm) | 155 | 165 | 185 |
| Maximum height (cm) | 165 | 185 | 195 |
| Seat tube (mm) (A) | 406 | 460 | 510 |
| Top tube (mm) (B) | 600 | 610 | 625 |
| Chainstay (mm) (C) | 465 | 465 | 465 |
| Wheelbase (mm) (D) | 1114 | 1124 | 1139 |
| Seat tube angle (°) (E) | 72 | 72 | 72 |
| Head tube angle (°) (F) | 70 | 70 | 70 |
| Reach (mm) (E) | 395 | 405 | 425 |
| Stack (mm) (F) | 650 | 655 | 655 |
| BB drop (mm) | 60 | 60 | 60 |
