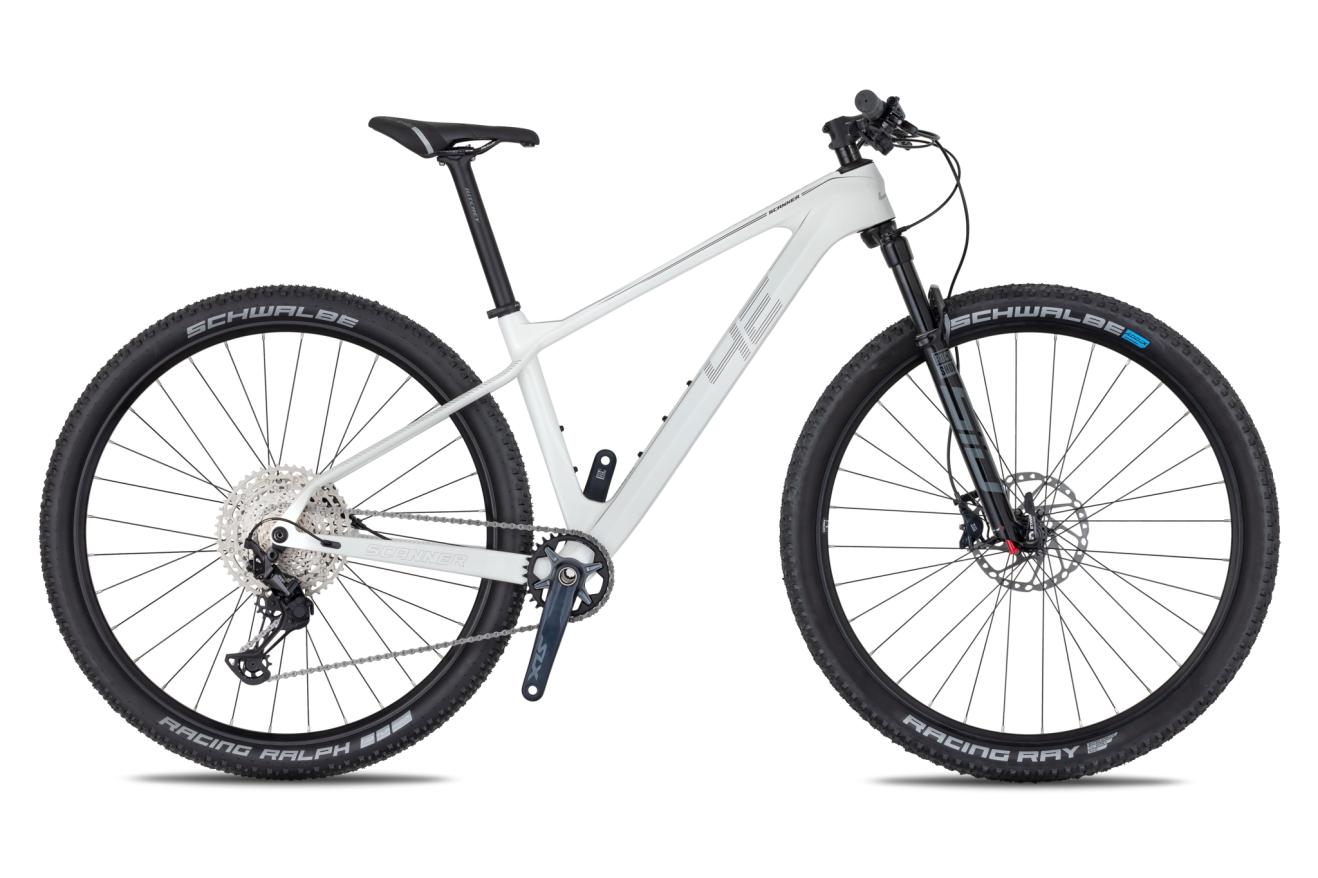

| Colours | white / iron sand |
|---|---|
| Frame | Carbon High Modulus 29" |
| Fork | RS SID SL Remote 100 |
| Chainring | SHIMANO DEORE FC-M6100-1 12SPD 32T |
| Shifting | SHIMANO DEORE SL-M6100 1x12SPD |
| Derailleur | SHIMANO XT RD-M8100 12SPD |
| Freewheel | SHIMANO DEORE CS-M6100 12SPD 10-51T |
| Chain | SHIMANO M6100 12SPD |
| Brakes | SHIMANO DEORE BR-M6100 (180/160) |
| Brake levers | SHIMANO DEORE BL-M6100 |
| Front hub | SHIMANO HB-TC500-15-B 15mm |
| Rear hub | SHIMANO FH-TC500-MS-B 12mm |
| Rims | MACH1 FZR-XC 29" |
| Tires | SCHWALBE Racing Ralph 29x2,25 |
| Pedals | *** |
| Handlebars | RITCHEY 740mm |
| Stem | RITCHEY |
| Seatpost | RITCHEY CARBON |
| Saddle | SELLE ITALIA X3 XP LADY BOOST SF |
| Bottom bracket | Integrated Press Fit |
| Weight | 11 |

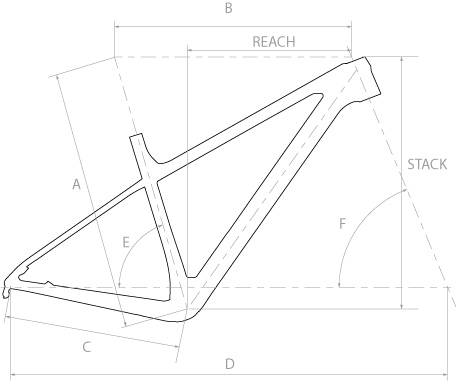

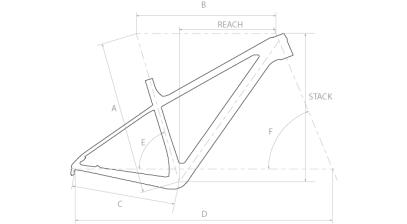

| Frame size | 17,5" | 19" |
|---|---|---|
| Minimum height (cm) | 165 | 175 |
| Maximum height (cm) | 175 | 185 |
| Seat tube (mm) (A) | 440 | 480 |
| Top tube (mm) (B) | 607 | 630.2 |
| Chainstay (mm) (C) | 425 | 425 |
| Wheelbase (mm) (D) | 1125.4 | 1150 |
| Seat tube angle (°) (E) | 75 | 75 |
| Head tube angle (°) (F) | 68.5 | 68.5 |
| Reach (mm) (E) | 445 | 465 |
| Stack (mm) (F) | 604.7 | 616.4 |
| BB drop (mm) | 64 | 64 |
