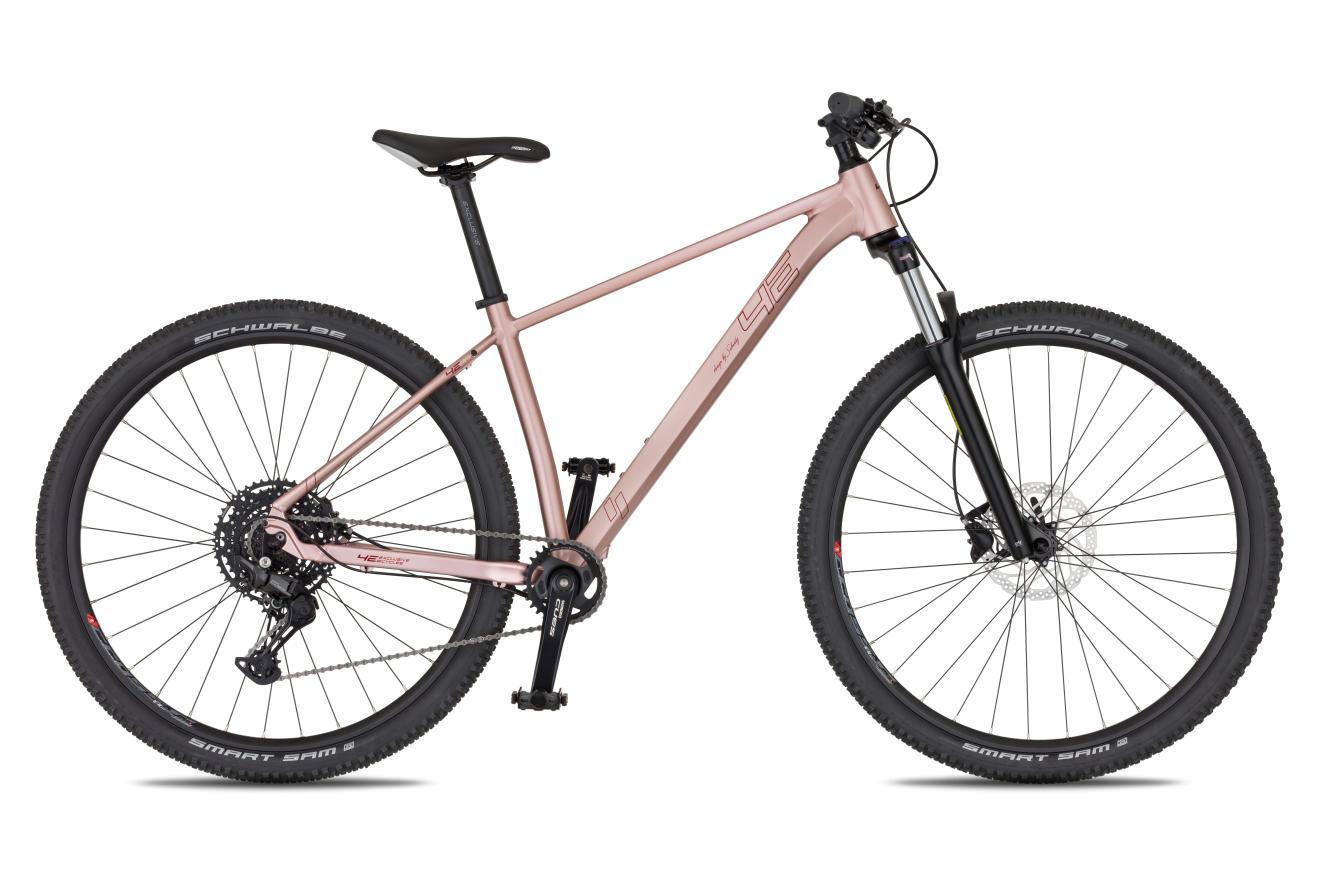

| Colours | matt cupra |
|---|---|

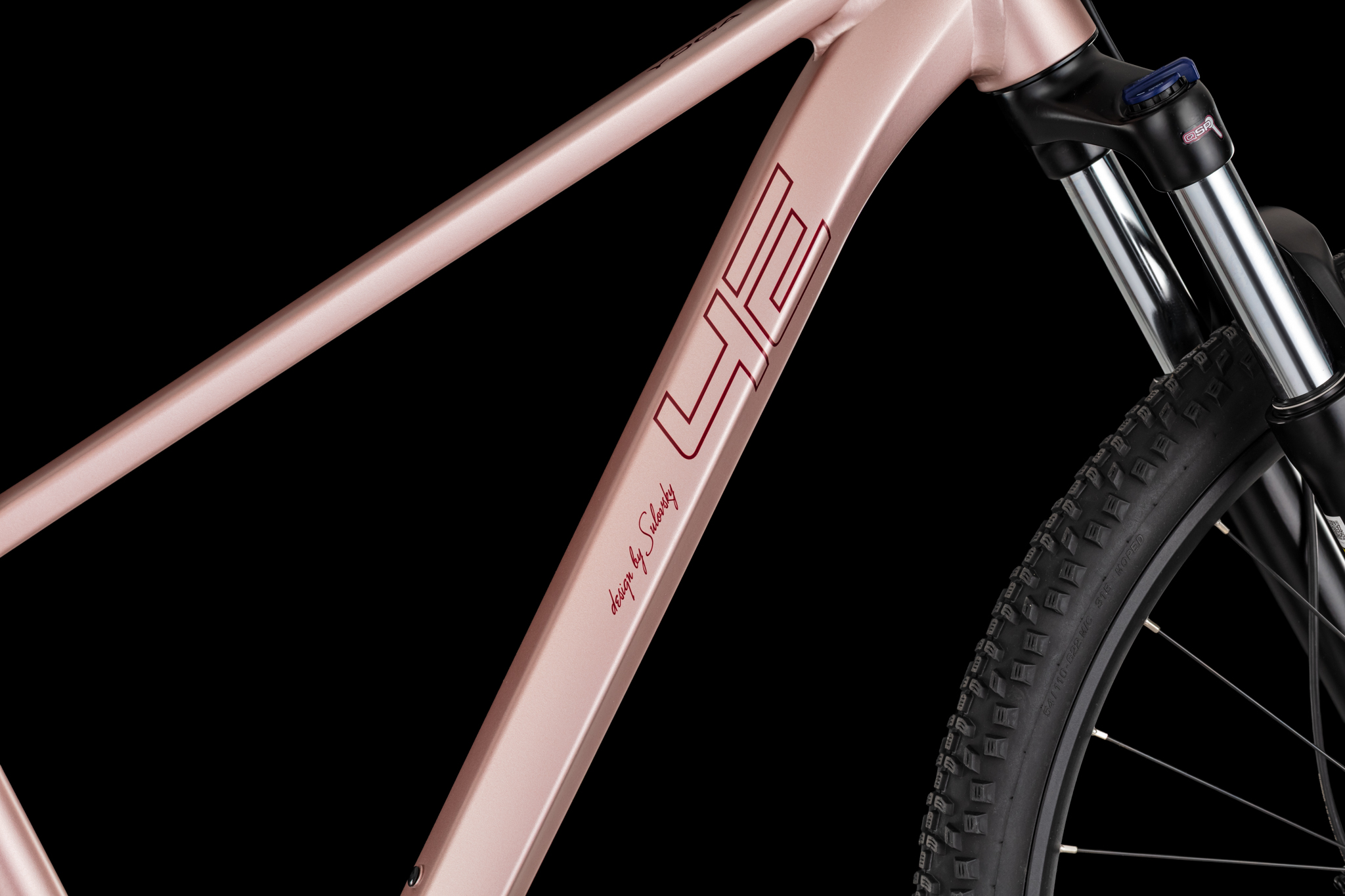

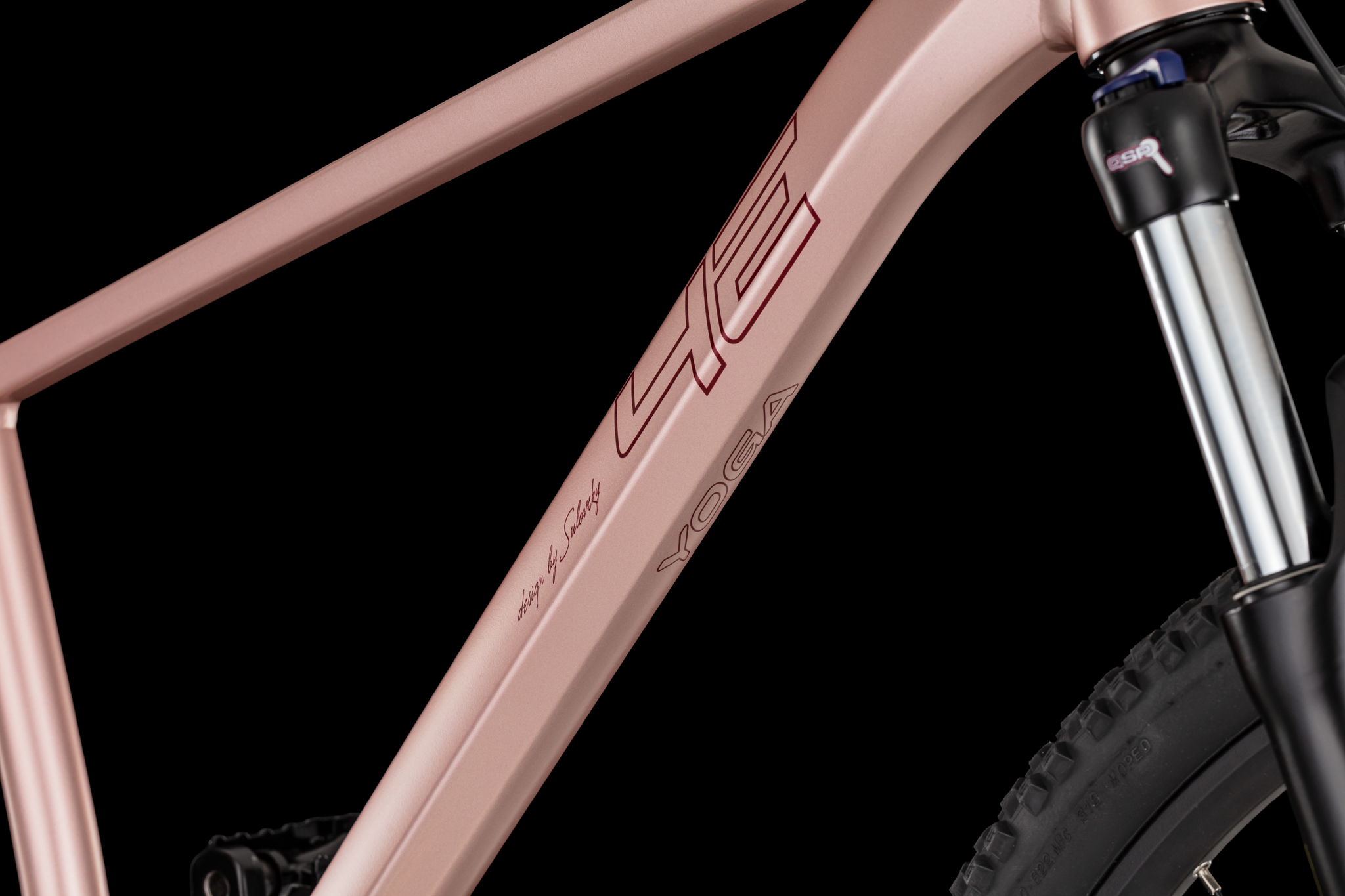

| Frame | ALU NEW WM SHAPE ICR 6061 |
| Fork | SR SUNTOUR XCM32 100 LO |
| Chainring | SHIMANO FC-U4000-1 10SPD 30T |
| Shifting | SHIMANO CUES SL-U6000 10SPD |

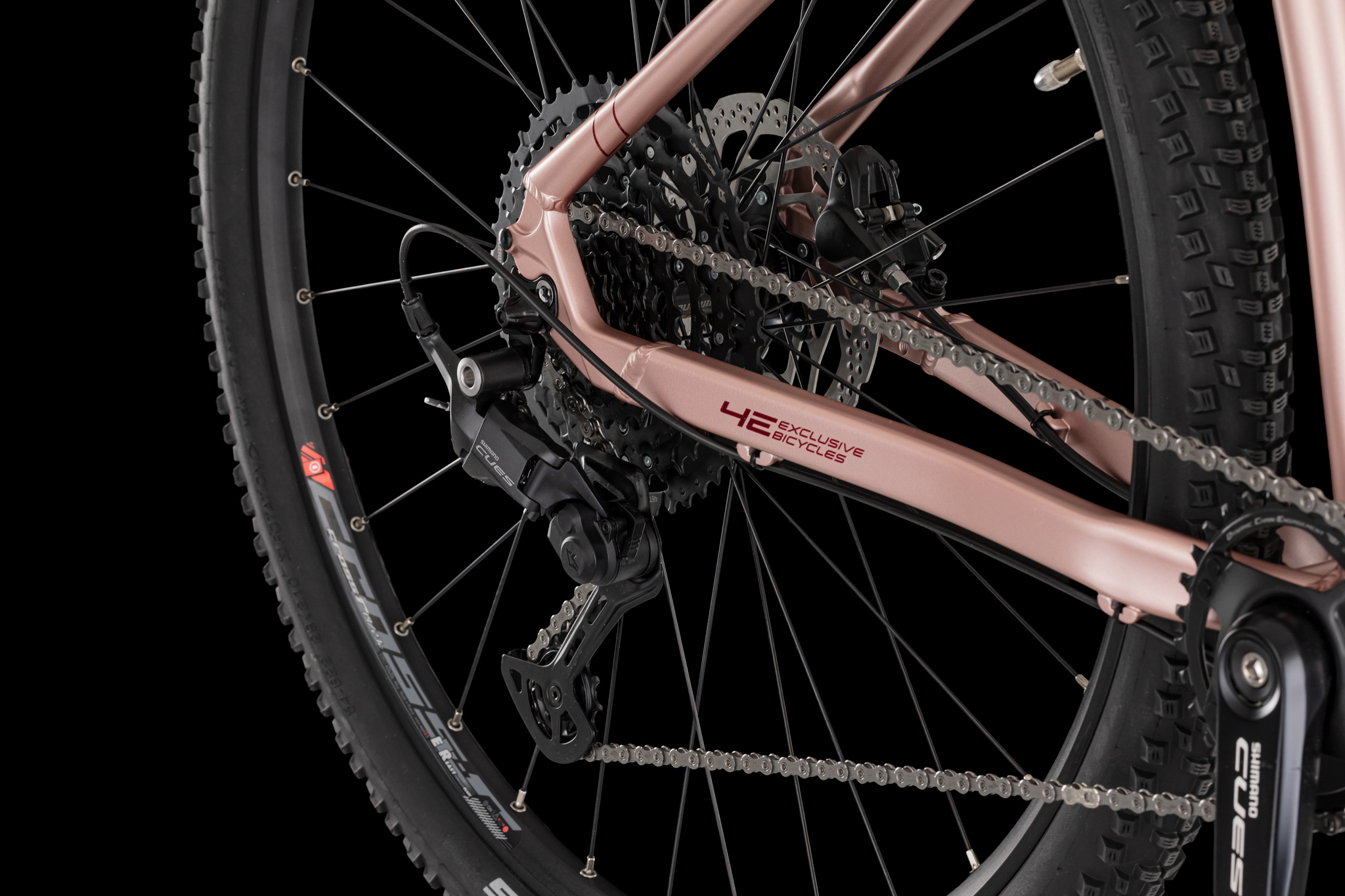

| Derailleur | SHIMANO CUES RD-U6000 10SPD |
| Front derailleur | *** |
| Freewheel | SHIMANO CS-LG300 10SPD 11-48T |
| Chain | SHIMANO LG500 10SPD |
| Brakes | SHIMANO BR-MT200 (180/160) |
| Brake levers | SHIMANO BL-MT201 |
| Front hub | SHIMANO HB-QC300 |
| Rear hub | SHIMANO FH-QC300 |
| Rims | MACH1 XC DISC 29" |
| Tires | SCHWALBE SMART SAM 29x2,1" |
| Pedals | UNION SP |
| Handlebars | EXCLUSIVE sand blasted 740mm |
| Stem | EXCLUSIVE sand blasted |
| Seatpost | EXCLUSIVE sand blasted |
| Saddle | 4E |
| Bottom bracket | Integrated |
| Weight | 12.8 |

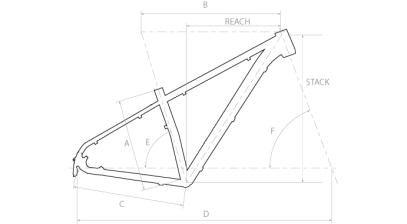

| Frame size | 15,5" | 17,3" | 18,5" |
|---|---|---|---|
| Minimum height (cm) | 155 | 165 | 175 |
| Maximum height (cm) | 165 | 175 | 185 |
| Seat tube (mm) (A) | 394 | 440 | 480 |
| Top tube (mm) (B) | 580 | 600 | 625 |
| Chainstay (mm) (C) | 435 | 435 | 435 |
| Wheelbase (mm) (D) | 1139 | 1139 | 1164 |
| Seat tube angle (°) (E) | 75 | 75 | 75 |
| Head tube angle (°) (F) | 68 | 68 | 68 |
| Reach (mm) (E) | 413 | 433 | 458 |
| Stack (mm) (F) | 624 | 624 | 624 |
| BB drop (mm) | 60 | 60 | 60 |
