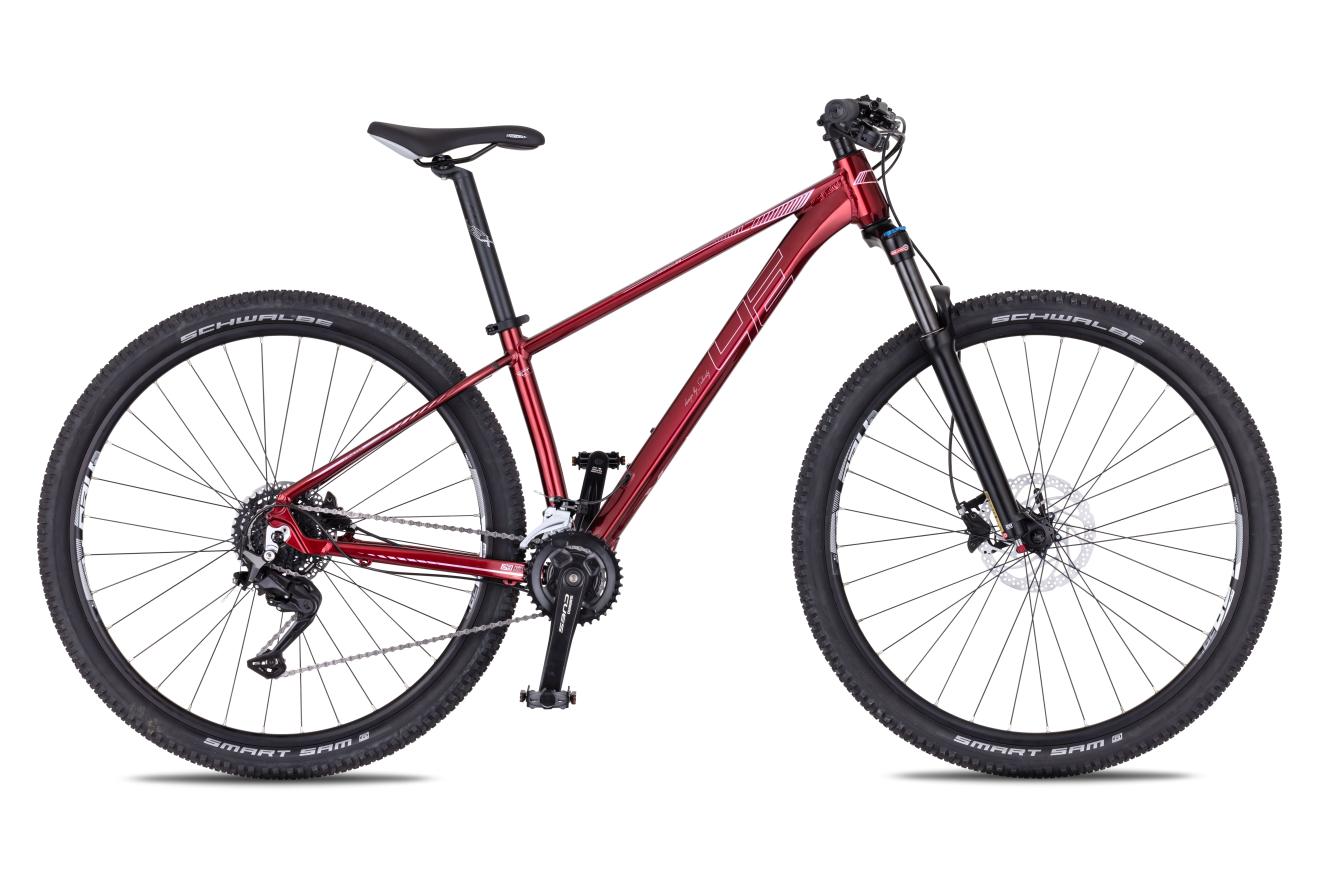

| Colours | red / pink hologram |
|---|---|
| Frame | ALU NEW WM SHAPE ICR 6061 |
| Fork | SR SUNTOUR XCM 100 |
| Chainring | SHIMANO FC-U4000-2 9SPD 36/22T |
| Shifting | SHIMANO CUES SL-U4000 2x9SPD |
| Derailleur | SHIMANO CUES RD-U3020 9SPD |
| Front derailleur | SHIMANO FD-U4000 |
| Freewheel | SHIMANO CS-LG300 9SPD 11-36T |
| Chain | SHIMANO LG500 9SPD |
| Brakes | SHIMANO BR-MT200 (180/160) |
| Brake levers | SHIMANO BL-MT201 |
| Front hub | SHIMANO HB-TX505 |
| Rear hub | SHIMANO FH-TX505 |
| Rims | MACH1 XC DISC 29" |
| Tires | SCHWALBE Smart Sam 29x2,1" |
| Pedals | UNION SP |
| Handlebars | EXCLUSIVE sand blasted 720mm |
| Stem | EXCLUSIVE sand blasted |
| Seatpost | EXCLUSIVE sand blasted |
| Saddle | SELLE ROYAL |

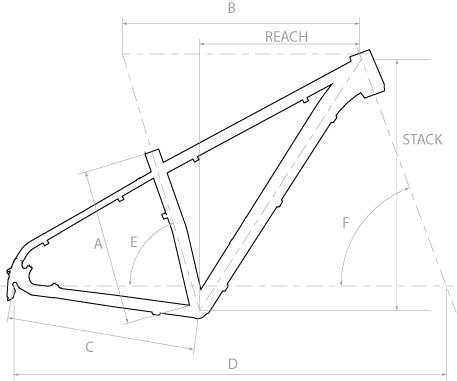

| Frame size | 16“ | 18“ |
|---|---|---|
| Minimum height (cm) | 155 | 165 |
| Maximum height (cm) | 165 | 178 |
| Seat tube (mm) (A) | 394 | 440 |
| Top tube (mm) (B) | 580 | 600 |
| Chainstay (mm) (C) | 442 | 442 |
| Wheelbase (mm) (D) | 1073 | 1093 |
| Seat tube angle (°) (E) | 72.5 | 72.5 |
| Head tube angle (°) (F) | 70 | 70 |
| Reach (mm) (E) | 386 | 406 |
| Stack (mm) (F) | 613 | 613 |
