| Colours | satin pearl |
|---|---|

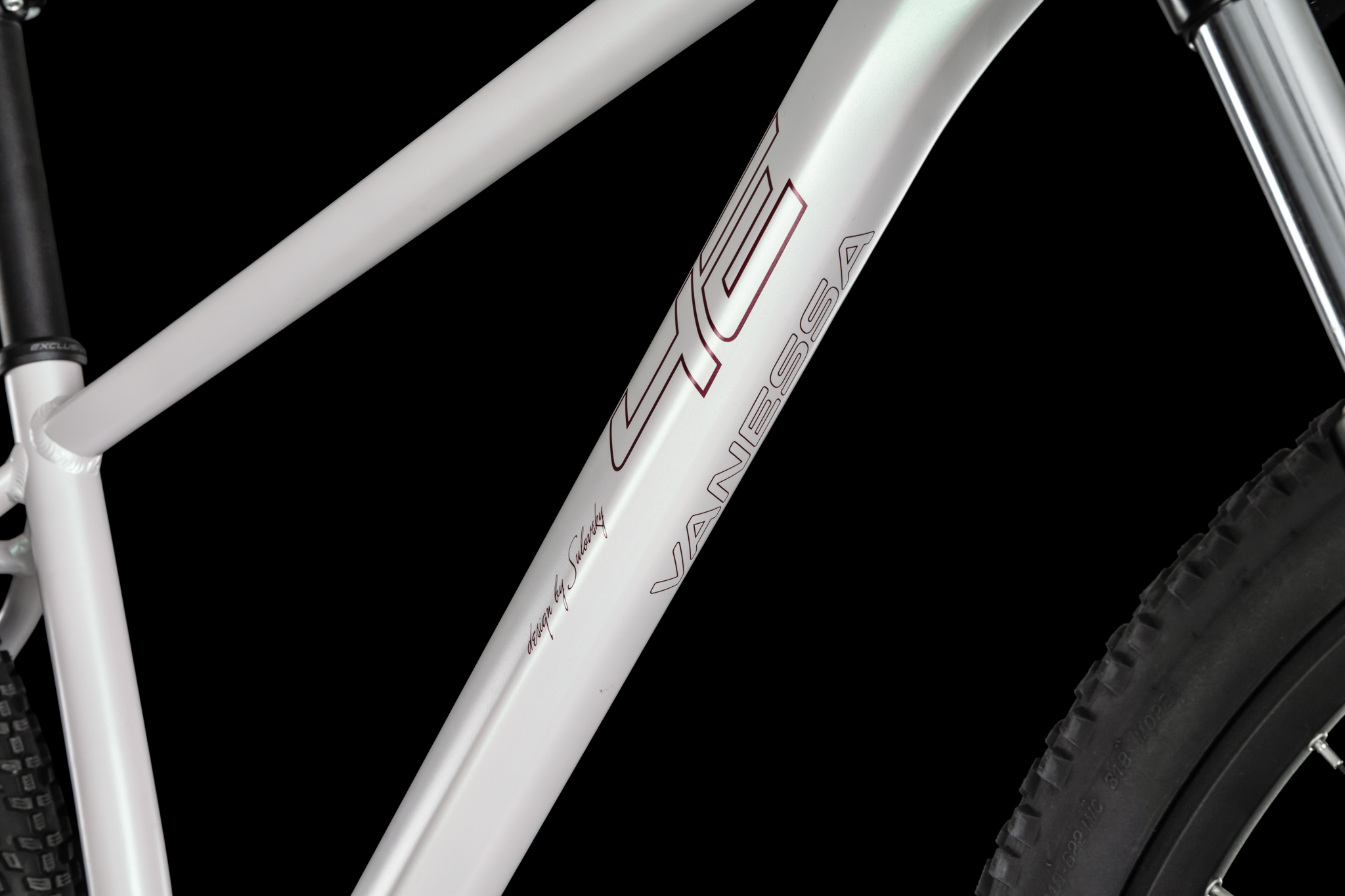

| Frame | ALU NEW WM SHAPE ICR 6061 |
| Fork | SR SUNTOUR XCM 100 |

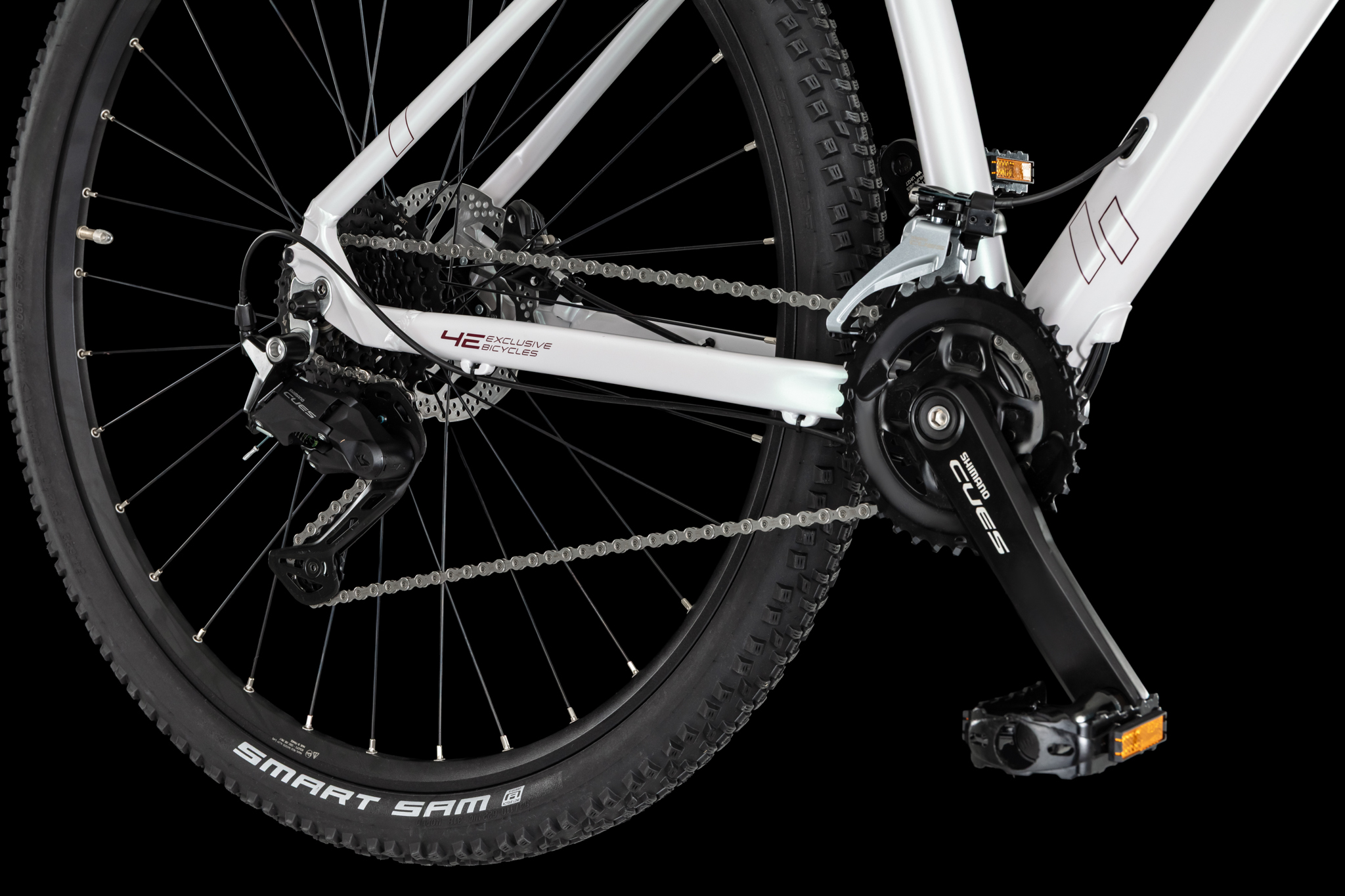

| Chainring | SHIMANO FC-U4000-2 9SPD 36/22T |
| Shifting | SHIMANO CUES SL-U4000 2x9SPD |
| Derailleur | SHIMANO CUES RD-U3020 9SPD |
| Front derailleur | SHIMANO FD-U4000 |
| Freewheel | SHIMANO CS-LG300 9SPD 11-36T |
| Chain | SHIMANO LG500 9SPD |

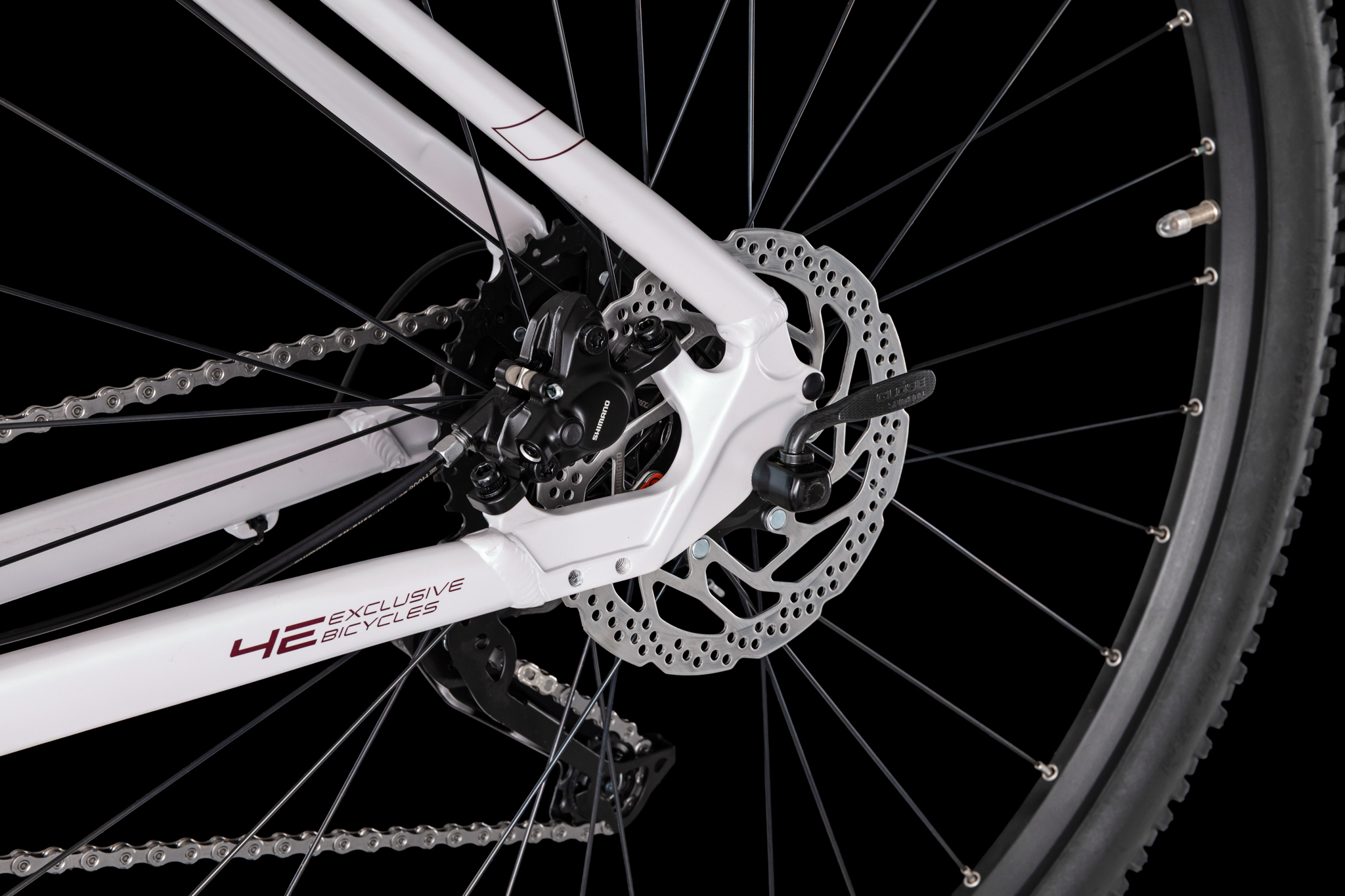

| Brakes | SHIMANO BR-MT200 (180/160) |
| Brake levers | SHIMANO BL-MT201 |
| Front hub | SHIMANO HB-TX505 |
| Rear hub | SHIMANO FH-TX505 |
| Rims | MACH1 XC DISC 29" |
| Tires | SCHWALBE Smart Sam 29x2,1" |
| Pedals | UNION SP |
| Handlebars | EXCLUSIVE sand blasted 720mm |
| Stem | EXCLUSIVE sand blasted |
| Seatpost | EXCLUSIVE sand blasted |
| Saddle | SELLE ROYAL |
| Frame size | 17“ (M) | 18,5" (L) |
|---|---|---|
| Minimum height (cm) | 165 | 175 |
| Maximum height (cm) | 175 | 185 |

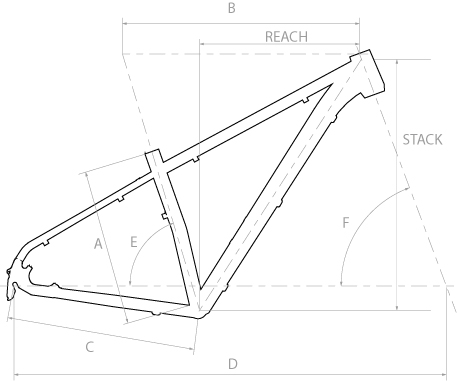

| Seat tube (mm) (A) | 440 | 480 |
| Top tube (mm) (B) | 600 | 625 |
| Chainstay (mm) (C) | 442 | 442 |
| Wheelbase (mm) (D) | 1146 | 1173 |
| Seat tube angle (°) (E) | 75 | 75 |
| Head tube angle (°) (F) | 68 | 68 |
| Reach (mm) (E) | 433 | 454 |
| Stack (mm) (F) | 623 | 637 |
| BB drop (mm) | 60 |
