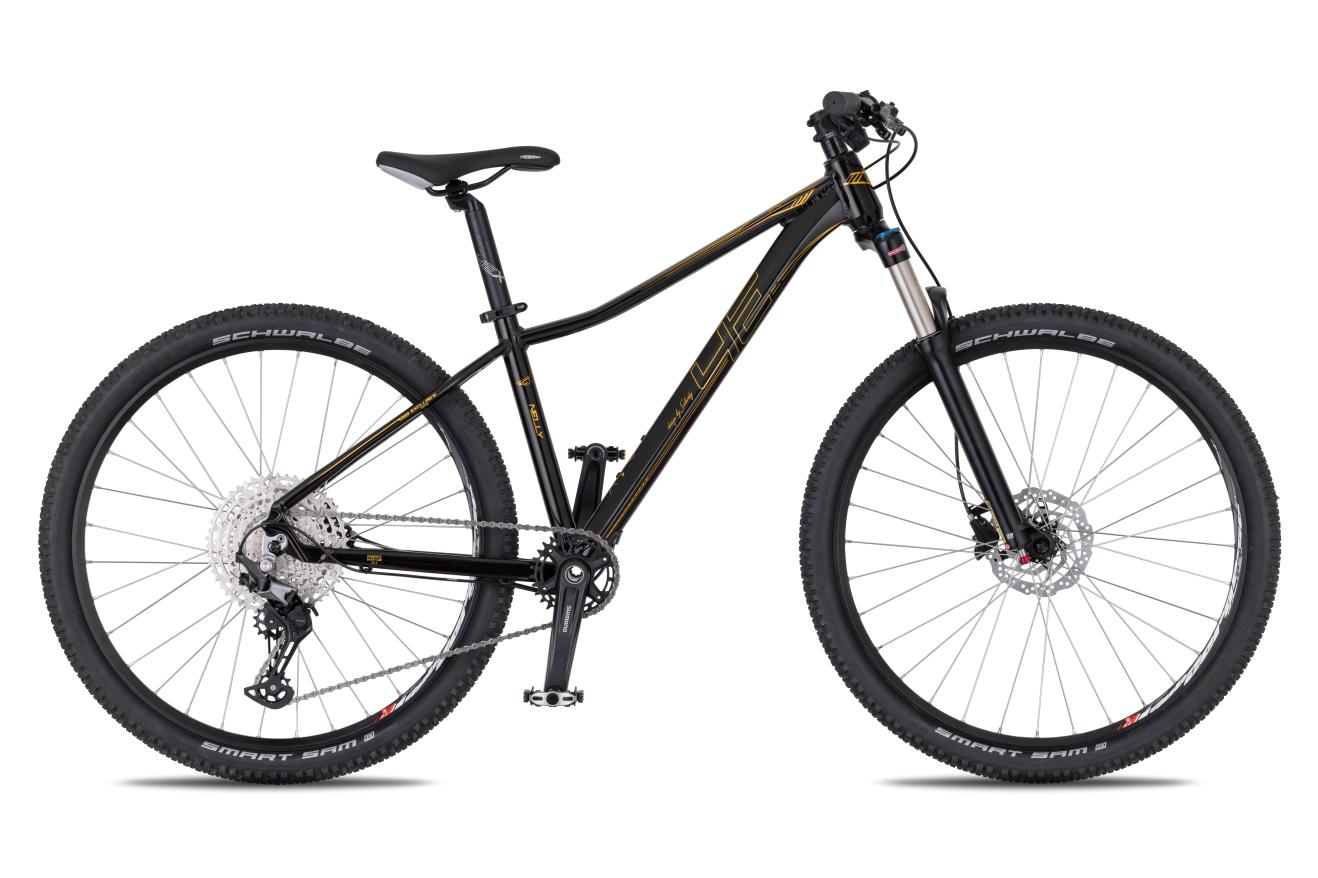

| Colours | black / gold |
|---|---|
| Frame | ALU NEW WM SHAPE ICR 7005 TB |
| Fork | SR SUNTOUR XCR AIR 100 RLO |
| Chainring | SHIMANO FC-MT510-1 12SPD 30T |
| Shifting | SHIMANO DEORE SL-M6100 1x12SPD |
| Derailleur | SHIMANO DEORE RD-M6100 12SPD |
| Front derailleur | *** |
| Freewheel | SUNRACE CSMZ 12SPD 11-51 |
| Chain | SHIMANO CN-M6100 12SPD |
| Brakes | SHIMANO BR-MT200 |
| Brake levers | SHIMANO BL-MT200 |
| Front hub | SHIMANO HB-QC400 |
| Rear hub | SHIMANO FH-QC400 |
| Rims | MACH1 NEURO DISC 27,5" |
| Tires | SCHWALBE Smart Sam |
| Pedals | UNION SP-610 |
| Handlebars | 4EX sand blasted 700mm |
| Stem | 4EX sand blasted |
| Seatpost | 4EX sand blasted |
| Saddle | SELLE ROYAL |

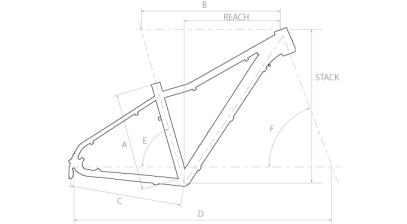

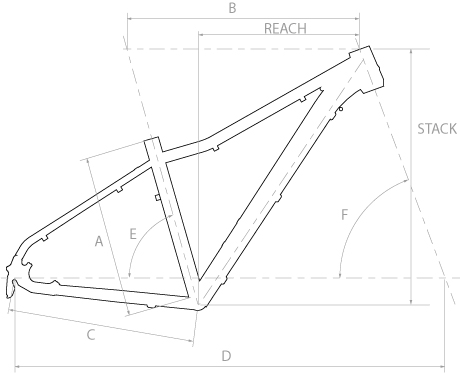

| Frame size | 15,5" (S) | 18" (M) |
|---|---|---|
| Minimum height (cm) | 155 | 165 |
| Maximum height (cm) | 165 | 175 |
| Seat tube (mm) (A) | 394 | 457 |
| Top tube (mm) (B) | 545 | 582 |
| Chainstay (mm) (C) | 430 | 430 |
| Wheelbase (mm) (D) | 1079 | 1119 |
| Seat tube angle (°) (E) | 75 | 75 |
| Head tube angle (°) (F) | 68 | 68 |
| Reach (mm) (E) | 388 | 420 |
| Stack (mm) (F) | 586 | 604 |
| BB drop (mm) | 45 | 45 |
