| Colours | dark wine / rose |
|---|---|
| Frame | ALU NEW WM SHAPE 6061 |
| Fork | SR SUNTOUR XCM32 100 HLO |
| Chainring | SHIMANO FC-U4000-1 10SPD 30T |
| Shifting | SHIMANO CUES SL-U6000-10 1x10SPD |
| Derailleur | SHIMANO CUES RD-U6000 10SPD |
| Front derailleur | *** |
| Freewheel | SHIMANO CS-LG300 10SPD 11-48 |
| Chain | SHIMANO CN-LG500 10SPD |
| Brakes | SHIMANO BR-MT200 |
| Brake levers | SHIMANO BL-MT200 |
| Front hub | SHIMANO HB-TX505 |
| Rear hub | SHIMANO FH-TX505 |
| Rims | MACH1 NEURO DISC 27,5" |
| Tires | SCHWALBE Smart Sam 27,5x2,1" |
| Pedals | UNION SP |
| Handlebars | 4EX sand blasted 700mm |
| Stem | 4EX sand blasted |
| Seatpost | 4EX sand blasted |
| Saddle | SELLE ROYAL |
| Bottom bracket | VP BSA 68 |
| Weight | 13.5 |

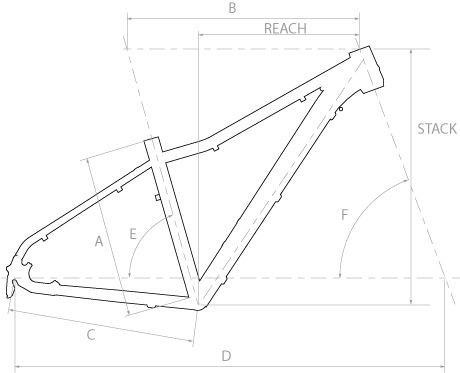

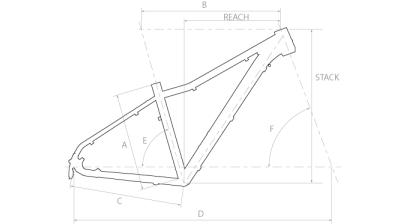

| Frame size | 15,5" (S) | 18" (M) |
|---|---|---|
| Minimum height (cm) | 155 | 165 |
| Maximum height (cm) | 165 | 175 |
| Seat tube (mm) (A) | 394 | 457 |
| Top tube (mm) (B) | 545 | 582 |
| Chainstay (mm) (C) | 430 | 430 |
| Wheelbase (mm) (D) | 1079 | 1119 |
| Seat tube angle (°) (E) | 75 | 75 |
| Head tube angle (°) (F) | 68 | 68 |
| Reach (mm) (E) | 388 | 420 |
| Stack (mm) (F) | 586 | 604 |
| BB drop (mm) | 45 |
